stats.c File Reference

#include <inttypes.h>
#include "internal.h"

Include dependency graph for stats.c:

Go to the source code of this file.

Functions
void	update_write_stats (const struct timespec *time1, const struct timespec *time0, ncstats *stats, int bytes)
void	update_raster_bytes (ncstats *stats, int bytes)
void	update_render_stats (const struct timespec *time1, const struct timespec *time0, ncstats *stats)
void	update_raster_stats (const struct timespec *time1, const struct timespec *time0, ncstats *stats)
void	reset_stats (ncstats *stats)
void	notcurses_stats (notcurses *nc, ncstats *stats)
ncstats *	notcurses_stats_alloc (const notcurses *nc __attribute__((unused)))
void	notcurses_stats_reset (notcurses *nc, ncstats *stats)
void	summarize_stats (notcurses *nc)

Function Documentation

notcurses_stats()

void notcurses_stats	(	notcurses *	nc,
		ncstats *	stats
	)

Definition at line 86 of file stats.c.

                                                   {
  pthread_mutex_lock(&nc->stats.lock);
    memcpy(stats, &nc->stats.s, sizeof(*stats));
  pthread_mutex_unlock(&nc->stats.lock);
}

Here is the caller graph for this function:

notcurses_stats_alloc()

ncstats * notcurses_stats_alloc

(

const notcurses *nc

__attribute__(unused)

)

Definition at line 92 of file stats.c.

                                                                            {
  ncstats* ret = malloc(sizeof(ncstats));
  if(ret == NULL){
    return NULL;
  }
  return ret;
}

Here is the caller graph for this function:

notcurses_stats_reset()

void notcurses_stats_reset	(	notcurses *	nc,
		ncstats *	stats
	)

Definition at line 100 of file stats.c.

                                                         {
  pthread_mutex_lock(&nc->stats.lock);
    if(stats){
      memcpy(stats, &nc->stats.s, sizeof(*stats));
    }
    // add the stats to the stashed stats, so that we can show true totals on
    // shutdown in the closing banner
    ncstats* stash = &nc->stashed_stats;
    if(nc->stats.s.render_min_ns < stash->render_min_ns){
      stash->render_min_ns = nc->stats.s.render_min_ns;
    }
    if(nc->stats.s.raster_min_bytes < stash->raster_min_bytes){
      stash->raster_min_bytes = nc->stats.s.raster_min_bytes;
    }
    if(nc->stats.s.raster_min_ns < stash->raster_min_ns){
      stash->raster_min_ns = nc->stats.s.raster_min_ns;
    }
    if(nc->stats.s.writeout_min_ns < stash->writeout_min_ns){
      stash->writeout_min_ns = nc->stats.s.writeout_min_ns;
    }
    if(nc->stats.s.render_max_ns > stash->render_max_ns){
      stash->render_max_ns = nc->stats.s.render_max_ns;
    }
    if(nc->stats.s.raster_max_bytes > stash->raster_max_bytes){
      stash->raster_max_bytes = nc->stats.s.raster_max_bytes;
    }
    if(nc->stats.s.raster_max_ns > stash->raster_max_ns){
      stash->raster_max_ns = nc->stats.s.raster_max_ns;
    }
    if(nc->stats.s.writeout_max_ns > stash->writeout_max_ns){
      stash->writeout_max_ns = nc->stats.s.writeout_max_ns;
    }
    stash->writeout_ns += nc->stats.s.writeout_ns;
    stash->raster_ns += nc->stats.s.raster_ns;
    stash->render_ns += nc->stats.s.render_ns;
    stash->raster_bytes += nc->stats.s.raster_bytes;
    stash->failed_renders += nc->stats.s.failed_renders;
    stash->failed_writeouts += nc->stats.s.failed_writeouts;
    stash->renders += nc->stats.s.renders;
    stash->writeouts += nc->stats.s.writeouts;
    stash->cellelisions += nc->stats.s.cellelisions;
    stash->cellemissions += nc->stats.s.cellemissions;
    stash->fgelisions += nc->stats.s.fgelisions;
    stash->fgemissions += nc->stats.s.fgemissions;
    stash->bgelisions += nc->stats.s.bgelisions;
    stash->bgemissions += nc->stats.s.bgemissions;
    stash->defaultelisions += nc->stats.s.defaultelisions;
    stash->defaultemissions += nc->stats.s.defaultemissions;
    stash->refreshes += nc->stats.s.refreshes;
    stash->sprixelemissions += nc->stats.s.sprixelemissions;
    stash->sprixelelisions += nc->stats.s.sprixelelisions;
    stash->sprixelbytes += nc->stats.s.sprixelbytes;
    stash->appsync_updates += nc->stats.s.appsync_updates;
    stash->input_errors += nc->stats.s.input_errors;
    stash->input_events += nc->stats.s.input_events;
    stash->hpa_gratuitous += nc->stats.s.hpa_gratuitous;
    stash->cell_geo_changes += nc->stats.s.cell_geo_changes;
    stash->pixel_geo_changes += nc->stats.s.pixel_geo_changes;

    stash->fbbytes = nc->stats.s.fbbytes;
    stash->planes = nc->stats.s.planes;
    reset_stats(&nc->stats.s);
  pthread_mutex_unlock(&nc->stats.lock);
}

Here is the call graph for this function:

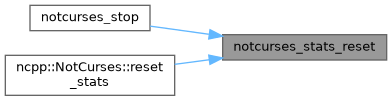

Here is the caller graph for this function:

reset_stats()

void reset_stats

(

ncstats *

stats

)

Definition at line 74 of file stats.c.

                                {
  uint64_t fbbytes = stats->fbbytes;
  unsigned planes = stats->planes;
  memset(stats, 0, sizeof(*stats));
  stats->render_min_ns = 1ull << 62u;
  stats->raster_min_bytes = 1ull << 62u;
  stats->raster_min_ns = 1ull << 62u;
  stats->writeout_min_ns = 1ull << 62u;
  stats->fbbytes = fbbytes;
  stats->planes = planes;
}

Here is the caller graph for this function:

summarize_stats()

void summarize_stats

(

notcurses *

nc

)

Definition at line 166 of file stats.c.

                                   {
  const ncstats *stats = &nc->stashed_stats;
  char totalbuf[NCBPREFIXSTRLEN + 1];
  char minbuf[NCBPREFIXSTRLEN + 1];
  char maxbuf[NCBPREFIXSTRLEN + 1];
  char avgbuf[NCBPREFIXSTRLEN + 1];
  if(stats->renders){
    ncqprefix(stats->render_ns, NANOSECS_IN_SEC, totalbuf, 0);
    ncqprefix(stats->render_min_ns, NANOSECS_IN_SEC, minbuf, 0);
    ncqprefix(stats->render_max_ns, NANOSECS_IN_SEC, maxbuf, 0);
    ncqprefix(stats->render_ns / stats->renders, NANOSECS_IN_SEC, avgbuf, 0);
    fprintf(stderr, "%"PRIu64" render%s, %ss (%ss min, %ss avg, %ss max)" NL,
            stats->renders, stats->renders == 1 ? "" : "s",
            totalbuf, minbuf, avgbuf, maxbuf);
  }
  if(stats->writeouts || stats->failed_writeouts){
    ncqprefix(stats->raster_ns, NANOSECS_IN_SEC, totalbuf, 0);
    ncqprefix(stats->raster_min_ns, NANOSECS_IN_SEC, minbuf, 0);
    ncqprefix(stats->raster_max_ns, NANOSECS_IN_SEC, maxbuf, 0);
    ncqprefix(stats->raster_ns / (stats->writeouts + stats->failed_writeouts),
            NANOSECS_IN_SEC, avgbuf, 0);
    fprintf(stderr, "%"PRIu64" raster%s, %ss (%ss min, %ss avg, %ss max)" NL,
            stats->writeouts, stats->writeouts == 1 ? "" : "s",
            totalbuf, minbuf, avgbuf, maxbuf);
    ncqprefix(stats->writeout_ns, NANOSECS_IN_SEC, totalbuf, 0);
    ncqprefix(stats->writeout_ns ? stats->writeout_min_ns : 0,
            NANOSECS_IN_SEC, minbuf, 0);
    ncqprefix(stats->writeout_max_ns, NANOSECS_IN_SEC, maxbuf, 0);
    ncqprefix(stats->writeouts ? stats->writeout_ns / stats->writeouts : 0,
            NANOSECS_IN_SEC, avgbuf, 0);
    fprintf(stderr, "%"PRIu64" write%s, %ss (%ss min, %ss avg, %ss max)" NL,
            stats->writeouts, stats->writeouts == 1 ? "" : "s",
            totalbuf, minbuf, avgbuf, maxbuf);
  }
  if(stats->renders || stats->input_events){
    ncbprefix(stats->raster_bytes, 1, totalbuf, 1),
    ncbprefix(stats->raster_bytes ? stats->raster_min_bytes : 0,
              1, minbuf, 1),
    ncbprefix(stats->renders ? stats->raster_bytes / stats->renders : 0, 1, avgbuf, 1);
    ncbprefix(stats->raster_max_bytes, 1, maxbuf, 1),
    fprintf(stderr, "%sB (%sB min, %sB avg, %sB max) %"PRIu64" input%s Ghpa: %"PRIu64 NL,
            totalbuf, minbuf, avgbuf, maxbuf,
            stats->input_events,
            stats->input_events == 1 ? "" : "s",
            stats->hpa_gratuitous);
  }
  fprintf(stderr, "%"PRIu64" failed render%s, %"PRIu64" failed raster%s, %"
                  PRIu64" refresh%s, %"PRIu64" input error%s" NL,
          stats->failed_renders, stats->failed_renders == 1 ? "" : "s",
          stats->failed_writeouts, stats->failed_writeouts == 1 ? "" : "s",
          stats->refreshes, stats->refreshes == 1 ? "" : "es",
          stats->input_errors, stats->input_errors == 1 ? "" : "s");
  fprintf(stderr, "RGB emits:elides: def %"PRIu64":%"PRIu64" fg %"PRIu64":%"
                  PRIu64" bg %"PRIu64":%"PRIu64 NL,
          stats->defaultemissions,
          stats->defaultelisions,
          stats->fgemissions,
          stats->fgelisions,
          stats->bgemissions,
          stats->bgelisions);
  fprintf(stderr, "Cell emits:elides: %"PRIu64":%"PRIu64" (%.2f%%) %.2f%% %.2f%% %.2f%%" NL,
          stats->cellemissions, stats->cellelisions,
          (stats->cellemissions + stats->cellelisions) == 0 ? 0 :
          (stats->cellelisions * 100.0) / (stats->cellemissions + stats->cellelisions),
          (stats->defaultemissions + stats->defaultelisions) == 0 ? 0 :
          (stats->defaultelisions * 100.0) / (stats->defaultemissions + stats->defaultelisions),
          (stats->fgemissions + stats->fgelisions) == 0 ? 0 :
          (stats->fgelisions * 100.0) / (stats->fgemissions + stats->fgelisions),
          (stats->bgemissions + stats->bgelisions) == 0 ? 0 :
          (stats->bgelisions * 100.0) / (stats->bgemissions + stats->bgelisions));
  ncbprefix(stats->sprixelbytes, 1, totalbuf, 1);
  fprintf(stderr, "Bmap emits:elides: %"PRIu64":%"PRIu64" (%.2f%%) %sB (%.2f%%) SuM: %"PRIu64" (%.2f%%)" NL,
          stats->sprixelemissions, stats->sprixelelisions,
          (stats->sprixelemissions + stats->sprixelelisions) == 0 ? 0 :
          (stats->sprixelelisions * 100.0) / (stats->sprixelemissions + stats->sprixelelisions),
          totalbuf,
          stats->raster_bytes ? (stats->sprixelbytes * 100.0) / stats->raster_bytes : 0,
          stats->appsync_updates,
          stats->writeouts ? stats->appsync_updates * 100.0 / stats->writeouts : 0);
  if(stats->cell_geo_changes || stats->pixel_geo_changes){
    fprintf(stderr,"Screen/cell geometry changes: %"PRIu64"/%"PRIu64 NL,
            stats->cell_geo_changes, stats->pixel_geo_changes);
  }
}

Here is the caller graph for this function:

update_raster_bytes()

void update_raster_bytes	(	ncstats *	stats,
		int	bytes
	)

Definition at line 27 of file stats.c.

                                                   {
  if(bytes >= 0){
    stats->raster_bytes += bytes;
    if(bytes > stats->raster_max_bytes){
      stats->raster_max_bytes = bytes;
    }
    if(bytes < stats->raster_min_bytes){
      stats->raster_min_bytes = bytes;
    }
  }
}

Here is the caller graph for this function:

update_raster_stats()

void update_raster_stats	(	const struct timespec *	time1,
		const struct timespec *	time0,
		ncstats *	stats
	)

Definition at line 58 of file stats.c.

                                        {
  const int64_t elapsed = timespec_to_ns(time1) - timespec_to_ns(time0);
  //fprintf(stderr, "Rasterizing took %ld.%03lds\n", elapsed / NANOSECS_IN_SEC,
  //        (elapsed % NANOSECS_IN_SEC) / 1000000);
  if(elapsed > 0){ // don't count clearly incorrect information, egads
    stats->raster_ns += elapsed;
    if(elapsed > stats->raster_max_ns){
      stats->raster_max_ns = elapsed;
    }
    if(elapsed < stats->raster_min_ns){
      stats->raster_min_ns = elapsed;
    }
  }
}

Here is the caller graph for this function:

update_render_stats()

void update_render_stats	(	const struct timespec *	time1,
		const struct timespec *	time0,
		ncstats *	stats
	)

Definition at line 40 of file stats.c.

                                        {
  const int64_t elapsed = timespec_to_ns(time1) - timespec_to_ns(time0);
  //fprintf(stderr, "Rendering took %ld.%03lds\n", elapsed / NANOSECS_IN_SEC,
  //        (elapsed % NANOSECS_IN_SEC) / 1000000);
  if(elapsed > 0){ // don't count clearly incorrect information, egads
    ++stats->renders;
    stats->render_ns += elapsed;
    if(elapsed > stats->render_max_ns){
      stats->render_max_ns = elapsed;
    }
    if(elapsed < stats->render_min_ns){
      stats->render_min_ns = elapsed;
    }
  }
}

Here is the caller graph for this function:

update_write_stats()

void update_write_stats	(	const struct timespec *	time1,
		const struct timespec *	time0,
		ncstats *	stats,
		int	bytes
	)

Definition at line 5 of file stats.c.

                                                  {
  if(bytes >= 0){
    const int64_t elapsed = timespec_to_ns(time1) - timespec_to_ns(time0);
    if(elapsed > 0){ // don't count clearly incorrect information, egads
      ++stats->writeouts;
      stats->writeout_ns += elapsed;
      if(elapsed > stats->writeout_max_ns){
        stats->writeout_max_ns = elapsed;
      }
      if(elapsed < stats->writeout_min_ns){
        stats->writeout_min_ns = elapsed;
      }
    }
  }else{
    ++stats->failed_writeouts;
  }
}

Here is the caller graph for this function:
