plot.c File Reference

#include <math.h>
#include <float.h>
#include <limits.h>
#include <string.h>
#include <inttypes.h>
#include "internal.h"

Include dependency graph for plot.c:

Go to the source code of this file.

Data Structures
struct	ncplot

Macros
#define	MAXWIDTH   2
#define	CREATE(T, X)

Typedefs
typedef struct ncplot	ncplot

Functions
int	update_domain_uint64_t (ncuplot *ncp, uint64_t x)

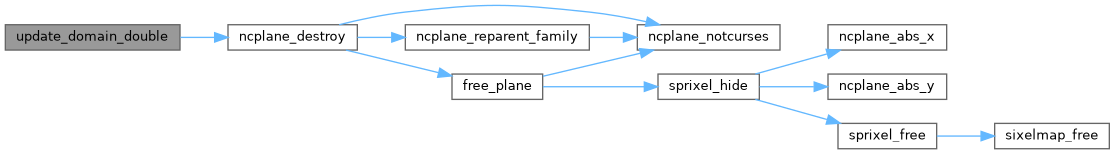

int	update_domain_double (ncdplot *ncp, uint64_t x)
ncuplot *	ncuplot_create (ncplane *n, const ncplot_options *opts, uint64_t miny, uint64_t maxy)
ncplane *	ncuplot_plane (ncuplot *n)
int	ncuplot_add_sample (ncuplot *n, uint64_t x, uint64_t y)
int	ncuplot_set_sample (ncuplot *n, uint64_t x, uint64_t y)
void	ncuplot_destroy (ncuplot *n)
ncdplot *	ncdplot_create (ncplane *n, const ncplot_options *opts, double miny, double maxy)
ncplane *	ncdplot_plane (ncdplot *n)
int	ncdplot_add_sample (ncdplot *n, uint64_t x, double y)
int	ncdplot_set_sample (ncdplot *n, uint64_t x, double y)
int	ncuplot_sample (const ncuplot *n, uint64_t x, uint64_t *y)
int	ncdplot_sample (const ncdplot *n, uint64_t x, double *y)
void	ncdplot_destroy (ncdplot *n)

Macro Definition Documentation

CREATE

#define CREATE	(		T,
			X
	)

Definition at line 85 of file plot.c.

                           { \
  T* slots; \
  T miny, maxy; \
  ncplot plot; \
} nc##X##plot; \
\
static int redraw_pixelplot_##T(nc##X##plot* ncp){ \
  if(calculate_gradient_vector(&ncp->plot, 1)){ \
    return -1; \
  } \
  const int scale = ncplane_pile_const(ncp->plot.ncp)->cellpxx; \
  ncplane_erase(ncp->plot.ncp); \
  unsigned dimy, dimx; \
  ncplane_dim_yx(ncp->plot.ncp, &dimy, &dimx); \
  const unsigned scaleddim = dimx * scale; \
  /* each transition is worth this much change in value */ \
  const size_t states = ncplane_pile_const(ncp->plot.ncp)->cellpxy; \
  /* FIXME can we not rid ourselves of this meddlesome double? either way, the \
     interval is one row's range (for linear plots), or the base \
     (base^slots == maxy-miny) of the range (for exponential plots). */ \
  double interval; \
  if(ncp->plot.exponentiali){ \
    if(ncp->maxy > ncp->miny){ \
      interval = pow(ncp->maxy - ncp->miny, (double)1 / (dimy * states)); \
/* fprintf(stderr, "miny: %ju maxy: %ju dimy: %d states: %zu\n", miny, maxy, dimy, states); */ \
    }else{ \
      interval = 0; \
    } \
  }else{ \
    interval = ncp->maxy < ncp->miny ? 0 : (ncp->maxy - ncp->miny) / ((double)dimy * states); \
  } \
  const int startx = ncp->plot.labelaxisd ? NCPREFIXCOLUMNS : 0; /* plot cols begin here */ \
  /* if we want fewer slots than there are available columns, our final column \
     will be other than the plane's final column. most recent x goes here. */ \
  const unsigned finalx = (ncp->plot.slotcount < scaleddim - 1 - (startx * scale) ? \
                          startx + (ncp->plot.slotcount / scale) - 1 : dimx - 1); \
  ncplane_set_styles(ncp->plot.ncp, ncp->plot.legendstyle); \
  if(ncp->plot.labelaxisd){ \
    /* show the *top* of each interval range */ \
    for(unsigned y = 0 ; y < dimy ; ++y){ \
      ncplane_set_channels(ncp->plot.ncp, ncp->plot.channels[y * states]); \
      char buf[NCPREFIXSTRLEN + 1]; \
      if(ncp->plot.exponentiali){ \
        if(y == dimy - 1){ /* we cheat on the top row to exactly match maxy */ \
          ncqprefix(ncp->maxy * 100, 100, buf, 0); \
        }else{ \
          ncqprefix(pow(interval, (y + 1) * states) * 100, 100, buf, 0); \
        } \
      }else{ \
        ncqprefix((ncp->maxy - interval * states * (dimy - y - 1)) * 100, 100, buf, 0); \
      } \
      if(y == dimy - 1 && strlen(ncp->plot.title)){ \
        ncplane_printf_yx(ncp->plot.ncp, dimy - y - 1, 0, "%*.*s %s", \
                          NCPREFIXSTRLEN, NCPREFIXSTRLEN, buf, ncp->plot.title); \
      }else{ \
        ncplane_printf_yx(ncp->plot.ncp, dimy - y - 1, 0, "%*.*s", \
                          NCPREFIXSTRLEN, NCPREFIXSTRLEN, buf); \
      } \
    } \
  }else if(strlen(ncp->plot.title)){ \
    ncplane_set_channels(ncp->plot.ncp, ncp->plot.channels[(dimy - 1) * states]); \
    ncplane_printf_yx(ncp->plot.ncp, 0, NCPREFIXCOLUMNS - strlen(ncp->plot.title), "%s", ncp->plot.title); \
  } \
  ncplane_set_styles(ncp->plot.ncp, NCSTYLE_NONE); \
  if((int)finalx < startx){ /* exit on pathologically narrow planes */ \
    return 0; \
  } \
  if(!interval){ \
    interval = 1; \
  } \
  uint32_t* pixels = malloc(dimy * dimx * states * scale * sizeof(*pixels)); \
  if(pixels == NULL){ \
    return -1; \
  } \
  /* FIXME just zero out as we copy to each */ \
  memset(pixels, 0, dimy * dimx * states * scale * sizeof(*pixels)); \
  /* a column corresponds to |scale| slots' worth of samples. prepare the working gval set. */ \
  T* gvals = malloc(sizeof(*gvals) * scale); \
  if(gvals == NULL){ \
    free(pixels); \
    return -1; \
  } \
  int idx = ncp->plot.slotstart; /* idx holds the real slot index; we move backwards */ \
  /* iterate backwards across the plot from the final (rightmost) x being \
     plotted (finalx) to the first (leftmost) x being plotted (startx).   */ \
  for(int x = finalx ; x >= startx ; --x){ \
    /* load gvals retaining the same ordering we have in the actual array */ \
    for(int i = scale - 1 ; i >= 0 ; --i){ \
      gvals[i] = ncp->slots[idx]; /* clip the value at the limits of the graph */ \
      if(gvals[i] < ncp->miny){ \
        gvals[i] = ncp->miny; \
      } \
      if(gvals[i] > ncp->maxy){ \
        gvals[i] = ncp->maxy; \
      } \
      /* FIXME if there are an odd number, only go up through the valid ones... */ \
      if(--idx < 0){ \
        idx = ncp->plot.slotcount - 1; \
      } \
    } \
    /* starting from the least-significant row, progress in the more significant \
       direction, prepping pixels, aborting early if we can't draw anything in a \
       given cell. */ \
    T intervalbase = ncp->miny; \
    bool done = !ncp->plot.bset->fill; \
    for(unsigned y = 0 ; y < dimy ; ++y){ \
      /* if we've got at least one interval's worth on the number of positions \
        times the number of intervals per position plus the starting offset, \
        we're going to print *something* */ \
      for(int i = 0 ; i < scale ; ++i){ \
        size_t egcidx; \
        if(intervalbase < gvals[i]){ \
          if(ncp->plot.exponentiali){ \
            /* we want the log-base-interval of gvals[i] */ \
            double scaled = log(gvals[i] - ncp->miny) / log(interval); \
            double sival = intervalbase ? log(intervalbase) / log(interval) : 0; \
            egcidx = scaled - sival; \
          }else{ \
            egcidx = (gvals[i] - intervalbase) / interval; \
          } \
          if(egcidx >= states){ \
            egcidx = states; \
            done = false; \
          } \
        }else{ \
          egcidx = 0; \
        } \
/*fprintf(stderr, "WRITING TO y/x %d/%d (%zu)\n", y, x, dimx * dimy * scale * states); */\
        for(size_t yy = 0 ; yy < egcidx ; ++yy){ \
          int poff = x * scale + i + (((dimy - 1 - y) * states + (states - 1 - yy)) * dimx * scale); \
          uint32_t color = ncchannels_fg_rgb(ncp->plot.channels[y * states + yy]); \
          ncpixel_set_a(&color, 0xff); \
          pixels[poff] = color; \
        } \
      } \
      if(done){ \
        break; \
      } \
      if(ncp->plot.exponentiali){ \
        intervalbase = ncp->miny + pow(interval, (y + 1) * states - 1); \
      }else{ \
        intervalbase += (states * interval); \
      } \
    } \
  } \
  if(ncp->plot.printsample){ \
    ncplane_set_styles(ncp->plot.ncp, ncp->plot.legendstyle); \
    ncplane_set_channels(ncp->plot.ncp, ncp->plot.maxchannels); \
    /* FIXME is this correct for double? */ \
    /* we use idx, and thus get an immediate count, changing as we load it.
     * if you want a stable summary, print the previous slot */ \
    ncplane_printf_aligned(ncp->plot.ncp, 0, NCALIGN_RIGHT, "%" PRIu64, (uint64_t)ncp->slots[idx]); \
  } \
  ncplane_home(ncp->plot.ncp); \
  struct ncvisual* ncv = ncvisual_from_rgba(pixels, dimy * states, dimx * scale * 4, dimx * scale); \
  free(pixels); \
  free(gvals); \
  if(ncv == NULL){ \
    return -1; \
  } \
  struct ncvisual_options vopts = { \
    .n = ncp->plot.pixelp, \
    .blitter = NCBLIT_PIXEL, \
    .flags = NCVISUAL_OPTION_NODEGRADE, \
  }; \
  if(ncvisual_blit(ncplane_notcurses(ncp->plot.ncp), ncv, &vopts) == NULL){ \
    ncvisual_destroy(ncv); \
    return -1; \
  } \
  ncvisual_destroy(ncv); \
  return 0; \
} \
\
static int redraw_plot_##T(nc##X##plot* ncp){ \
  if(ncp->plot.bset->geom == NCBLIT_PIXEL){ \
    return redraw_pixelplot_##T(ncp); \
  } \
  if(calculate_gradient_vector(&ncp->plot, 0)){ \
    return -1; \
  } \
  ncplane_erase(ncp->plot.ncp); \
  const unsigned scale = ncp->plot.bset->width; \
  unsigned dimy, dimx; \
  ncplane_dim_yx(ncp->plot.ncp, &dimy, &dimx); \
  const unsigned scaleddim = dimx * scale; \
  /* each transition is worth this much change in value */ \
  const size_t states = ncp->plot.bset->height + 1; \
  /* FIXME can we not rid ourselves of this meddlesome double? either way, the \
     interval is one row's range (for linear plots), or the base \
     (base^slots == maxy-miny) of the range (for exponential plots). */ \
  double interval; \
  if(ncp->plot.exponentiali){ \
    if(ncp->maxy > ncp->miny){ \
      interval = pow(ncp->maxy - ncp->miny, (double)1 / (dimy * states)); \
/* fprintf(stderr, "miny: %ju maxy: %ju dimy: %d states: %zu\n", miny, maxy, dimy, states); */ \
    }else{ \
      interval = 0; \
    } \
  }else{ \
    interval = ncp->maxy < ncp->miny ? 0 : (ncp->maxy - ncp->miny) / ((double)dimy * states); \
  } \
  const int startx = ncp->plot.labelaxisd ? NCPREFIXCOLUMNS : 0; /* plot cols begin here */ \
  /* if we want fewer slots than there are available columns, our final column \
     will be other than the plane's final column. most recent x goes here. */ \
  const unsigned finalx = (ncp->plot.slotcount < scaleddim - 1 - (startx * scale) ? \
                          startx + (ncp->plot.slotcount / scale) - 1 : dimx - 1); \
  ncplane_set_styles(ncp->plot.ncp, ncp->plot.legendstyle); \
  if(ncp->plot.labelaxisd){ \
    /* show the *top* of each interval range */ \
    for(unsigned y = 0 ; y < dimy ; ++y){ \
      ncplane_set_channels(ncp->plot.ncp, ncp->plot.channels[y]); \
      char buf[NCPREFIXSTRLEN + 1]; \
      if(ncp->plot.exponentiali){ \
        if(y == dimy - 1){ /* we cheat on the top row to exactly match maxy */ \
          ncqprefix(ncp->maxy * 100, 100, buf, 0); \
        }else{ \
          ncqprefix(pow(interval, (y + 1) * states) * 100, 100, buf, 0); \
        } \
      }else{ \
        ncqprefix((ncp->maxy - interval * states * (dimy - y - 1)) * 100, 100, buf, 0); \
      } \
      if(y == dimy - 1 && strlen(ncp->plot.title)){ \
        ncplane_printf_yx(ncp->plot.ncp, dimy - y - 1, NCPREFIXCOLUMNS - strlen(buf), "%s %s", buf, ncp->plot.title); \
      }else{ \
        ncplane_printf_yx(ncp->plot.ncp, dimy - y - 1, NCPREFIXCOLUMNS - strlen(buf), "%s", buf); \
      } \
    } \
  }else if(strlen(ncp->plot.title)){ \
    ncplane_set_channels(ncp->plot.ncp, ncp->plot.channels[dimy - 1]); \
    ncplane_printf_yx(ncp->plot.ncp, 0, NCPREFIXCOLUMNS - strlen(ncp->plot.title), "%s", ncp->plot.title); \
  } \
  ncplane_set_styles(ncp->plot.ncp, NCSTYLE_NONE); \
  if((int)finalx < startx){ /* exit on pathologically narrow planes */ \
    return 0; \
  } \
  if(!interval){ \
    interval = 1; \
  } \
  int idx = ncp->plot.slotstart; /* idx holds the real slot index; we move backwards */ \
  for(int x = finalx ; x >= startx ; --x){ \
    /* a single column might correspond to more than 1 ('scale', up to \
       MAXWIDTH) slots' worth of samples. prepare the working gval set. */ \
    T gvals[MAXWIDTH]; \
    /* load it retaining the same ordering we have in the actual array */ \
    for(int i = scale - 1 ; i >= 0 ; --i){ \
      gvals[i] = ncp->slots[idx]; /* clip the value at the limits of the graph */ \
      if(gvals[i] < ncp->miny){ \
        gvals[i] = ncp->miny; \
      } \
      if(gvals[i] > ncp->maxy){ \
        gvals[i] = ncp->maxy; \
      } \
      /* FIXME if there are an odd number, only go up through the valid ones... */ \
      if(--idx < 0){ \
        idx = ncp->plot.slotcount - 1; \
      } \
    } \
    /* starting from the least-significant row, progress in the more significant \
       direction, drawing egcs from the grid specification, aborting early if \
       we can't draw anything in a given cell. */ \
    T intervalbase = ncp->miny; \
    const wchar_t* egc = ncp->plot.bset->plotegcs; \
    bool done = !ncp->plot.bset->fill; \
    for(unsigned y = 0 ; y < dimy ; ++y){ \
      ncplane_set_channels(ncp->plot.ncp, ncp->plot.channels[y]); \
      size_t egcidx = 0, sumidx = 0; \
      /* if we've got at least one interval's worth on the number of positions \
        times the number of intervals per position plus the starting offset, \
        we're going to print *something* */ \
      for(unsigned i = 0 ; i < scale ; ++i){ \
        sumidx *= states; \
        if(intervalbase < gvals[i]){ \
          if(ncp->plot.exponentiali){ \
            /* we want the log-base-interval of gvals[i] */ \
            double scaled = log(gvals[i] - ncp->miny) / log(interval); \
            double sival = intervalbase ? log(intervalbase) / log(interval) : 0; \
            egcidx = scaled - sival; \
          }else{ \
            egcidx = (gvals[i] - intervalbase) / interval; \
          } \
          if(egcidx >= states){ \
            egcidx = states - 1; \
            done = false; \
          } \
          sumidx += egcidx; \
        }else{ \
          egcidx = 0; \
        } \
/* printf(stderr, "y: %d i(scale): %d gvals[%d]: %ju egcidx: %zu sumidx: %zu interval: %f intervalbase: %ju\n", y, i, i, gvals[i], egcidx, sumidx, interval, intervalbase); */ \
      } \
      /* if we're not UTF8, we can only arrive here via NCBLIT_1x1 (otherwise \
        we would have errored out during construction). even then, however, \
        we need handle ASCII differently, since it can't print full block. \
        in ASCII mode, sumidx != 0 means swap colors and use space. in all \
        modes, sumidx == 0 means don't do shit, since we erased earlier. */ \
/* if(sumidx)fprintf(stderr, "dimy: %d y: %d x: %d sumidx: %zu egc[%zu]: %lc\n", dimy, y, x, sumidx, sumidx, egc[sumidx]); */ \
      if(sumidx){ \
        uint64_t chan = ncp->plot.channels[y]; \
        if(notcurses_canutf8(ncplane_notcurses(ncp->plot.ncp))){ \
          char utf8[MB_LEN_MAX + 1]; \
          int bytes = wctomb(utf8, egc[sumidx]); \
          if(bytes < 0){ \
            return -1; \
          } \
          utf8[bytes] = '\0'; \
          nccell* c = ncplane_cell_ref_yx(ncp->plot.ncp, dimy - y - 1, x); \
          cell_set_bchannel(c, ncchannels_bchannel(chan)); \
          cell_set_fchannel(c, ncchannels_fchannel(chan)); \
          nccell_set_styles(c, NCSTYLE_NONE); \
          if(pool_blit_direct(&ncp->plot.ncp->pool, c, utf8, bytes, 1) <= 0){ \
            return -1; \
          } \
        }else{ \
          const uint64_t swapbg = ncchannels_bchannel(chan); \
          const uint64_t swapfg = ncchannels_fchannel(chan); \
          ncchannels_set_bchannel(&chan, swapfg); \
          ncchannels_set_fchannel(&chan, swapbg); \
          ncplane_set_channels(ncp->plot.ncp, chan); \
          if(ncplane_putchar_yx(ncp->plot.ncp, dimy - y - 1, x, ' ') <= 0){ \
            return -1; \
          } \
          ncchannels_set_bchannel(&chan, swapbg); \
          ncchannels_set_fchannel(&chan, swapfg); \
          ncplane_set_channels(ncp->plot.ncp, chan); \
        } \
      } \
      if(done){ \
        break; \
      } \
      if(ncp->plot.exponentiali){ \
        intervalbase = ncp->miny + pow(interval, (y + 1) * states - 1); \
      }else{ \
        intervalbase += (states * interval); \
      } \
    } \
  } \
  if(ncp->plot.printsample){ \
    ncplane_set_styles(ncp->plot.ncp, ncp->plot.legendstyle); \
    ncplane_set_channels(ncp->plot.ncp, ncp->plot.maxchannels); \
    ncplane_printf_aligned(ncp->plot.ncp, 0, NCALIGN_RIGHT, "%" PRIu64, (uint64_t)ncp->slots[idx]); \
  } \
  ncplane_home(ncp->plot.ncp); \
  return 0; \
} \
\
static const struct blitset* \
create_##T(nc##X##plot* ncpp, ncplane* n, const ncplot_options* opts, \
           const T miny, const T maxy, const T trueminy, const T truemaxy){ \
  /* set up ->plot.ncp first so it gets destroyed on error */ \
  ncpp->plot.ncp = n; \
  if(ncplane_set_widget(ncpp->plot.ncp, ncpp, (void(*)(void*))nc##X##plot_destroy)){ \
    return NULL; \
  } \
  ncplot_options zeroed = {0}; \
  if(!opts){ \
    opts = &zeroed; \
  } \
  if(opts->flags >= (NCPLOT_OPTION_PRINTSAMPLE << 1u)){ \
    logwarn("provided unsupported flags %016" PRIx64, opts->flags); \
  } \
  /* if miny == maxy (enabling domain detection), they both must be equal to 0 */ \
  if(miny == maxy && miny){ \
    return NULL; \
  } \
  if(opts->rangex < 0){ \
    logerror("error: supplied negative independent range %d", opts->rangex); \
    return NULL; \
  } \
  if(maxy < miny){ \
    logerror("error: supplied maxy < miny"); \
    return NULL; \
  } \
  /* DETECTMAXONLY can't be used without domain detection */ \
  if(opts->flags & NCPLOT_OPTION_DETECTMAXONLY && (miny != maxy)){ \
    logerror("supplied DETECTMAXONLY without domain detection"); \
    return NULL; \
  } \
  const notcurses* notc = ncplane_notcurses(n); \
  ncblitter_e blitfxn = opts ? opts->gridtype : NCBLIT_DEFAULT; \
  if(blitfxn == NCBLIT_DEFAULT){ \
    blitfxn = ncplot_defblitter(notc); \
  } \
  bool degrade_blitter = !(opts && (opts->flags & NCPLOT_OPTION_NODEGRADE)); \
  const struct blitset* bset = lookup_blitset(&notc->tcache, blitfxn, degrade_blitter); \
  if(bset == NULL){ \
    return NULL; \
  } \
  unsigned sdimy, sdimx; \
  ncplane_dim_yx(n, &sdimy, &sdimx); \
  if(sdimx <= 0){ \
    return NULL; \
  } \
  unsigned dimx = sdimx; \
  ncpp->plot.title = strdup(opts->title ? opts->title : ""); \
  ncpp->plot.rangex = opts->rangex; \
  /* if we're sizing the plot based off the plane dimensions, scale it by the \
     plot geometry's width for all calculations */ \
  const unsigned scaleddim = dimx * (bset->geom == NCBLIT_PIXEL ? ncplane_pile_const(n)->cellpxx : bset->width); \
  const unsigned scaledprefixlen = NCPREFIXCOLUMNS * (bset->geom == NCBLIT_PIXEL ? ncplane_pile_const(n)->cellpxx : bset->width); \
  if((ncpp->plot.slotcount = ncpp->plot.rangex) == 0){ \
    ncpp->plot.slotcount = scaleddim; \
  } \
  if(dimx < ncpp->plot.rangex){ \
    ncpp->plot.slotcount = scaleddim; \
  } \
  ncpp->plot.legendstyle = opts->legendstyle; \
  if( (ncpp->plot.labelaxisd = opts->flags & NCPLOT_OPTION_LABELTICKSD) ){ \
    if(ncpp->plot.slotcount + scaledprefixlen > scaleddim){ \
      if(scaleddim > scaledprefixlen){ \
        ncpp->plot.slotcount = scaleddim - scaledprefixlen; \
      } \
    } \
  } \
  size_t slotsize = sizeof(*ncpp->slots) * ncpp->plot.slotcount; \
  ncpp->slots = malloc(slotsize); \
  if(ncpp->slots == NULL){ \
    return NULL; \
  } \
  memset(ncpp->slots, 0, slotsize); \
  ncpp->plot.maxchannels = opts->maxchannels; \
  ncpp->plot.minchannels = opts->minchannels; \
  ncpp->plot.bset = bset; \
  ncpp->miny = miny; \
  ncpp->maxy = maxy; \
  ncpp->plot.vertical_indep = opts->flags & NCPLOT_OPTION_VERTICALI; \
  ncpp->plot.exponentiali = opts->flags & NCPLOT_OPTION_EXPONENTIALD; \
  ncpp->plot.detectonlymax = opts->flags & NCPLOT_OPTION_DETECTMAXONLY; \
  ncpp->plot.printsample = opts->flags & NCPLOT_OPTION_PRINTSAMPLE; \
  if( (ncpp->plot.detectdomain = (miny == maxy)) ){ \
    ncpp->maxy = trueminy; \
    if(!ncpp->plot.detectonlymax){ \
      ncpp->miny = truemaxy; \
    } \
  } \
  ncpp->plot.slotstart = 0; \
  ncpp->plot.slotx = 0; \
  ncpp->plot.chancount = 0; \
  ncpp->plot.channels = NULL; \
  if(bset->geom == NCBLIT_PIXEL){ \
    if(create_pixelp(&ncpp->plot, n)){ \
      return NULL; \
    } \
  } \
  redraw_plot_##T(ncpp); \
  return bset; \
} \
/* if x is less than the window, return -1, as the sample will be thrown away. \
   if the x is within the current window, find the proper slot and update it. \
   otherwise, the x is the newest sample. if it is obsoletes all existing slots, \
   reset them, and write the new sample anywhere. otherwise, write it to the \
   proper slot based on the current newest slot. */ \
int window_slide_##T(nc##X##plot* ncp, int64_t x){ \
  if(x <= ncp->plot.slotx){ /* x is within window, do nothing */ \
    return 0; \
  } /* x is newest; we might be keeping some, might not */ \
  int64_t xdiff = x - ncp->plot.slotx; /* the raw amount we're advancing */ \
  ncp->plot.slotx = x; \
  if(xdiff >= ncp->plot.slotcount){ /* we're throwing away all old samples, write to 0 */ \
    memset(ncp->slots, 0, sizeof(*ncp->slots) * ncp->plot.slotcount); \
    ncp->plot.slotstart = 0; \
    return 0; \
  } \
  /* we're throwing away only xdiff slots, which is less than slotcount. \
     first, we'll try to clear to the right...number to reset on the right of \
     the circular buffer. min of (available at current or to right, xdiff) */ \
  int slotsreset = ncp->plot.slotcount - ncp->plot.slotstart - 1; \
  if(slotsreset > xdiff){ \
    slotsreset = xdiff; \
  } \
  if(slotsreset){ \
    memset(ncp->slots + ncp->plot.slotstart + 1, 0, slotsreset * sizeof(*ncp->slots)); \
  } \
  ncp->plot.slotstart = (ncp->plot.slotstart + xdiff) % ncp->plot.slotcount; \
  xdiff -= slotsreset; \
  if(xdiff){ /* throw away some at the beginning */ \
    memset(ncp->slots, 0, xdiff * sizeof(*ncp->slots)); \
  } \
  return 0; \
} \
\
static int update_domain_##T(nc##X##plot* ncp, uint64_t x); \

MAXWIDTH

#define MAXWIDTH   2

Definition at line 84 of file plot.c.

Typedef Documentation

ncplot

typedef struct ncplot ncplot

Function Documentation

ncdplot_add_sample()

int ncdplot_add_sample	(	ncdplot *	n,
		uint64_t	x,
		double	y
	)

Definition at line 709 of file plot.c.

Here is the caller graph for this function:

ncdplot_create()

ncdplot * ncdplot_create	(	ncplane *	n,
		const ncplot_options *	opts,
		double	miny,
		double	maxy
	)

Definition at line 690 of file plot.c.

                                  {
  return n->plot.ncp;
}

int ncuplot_add_sample(ncuplot* n, uint64_t x, uint64_t y){
  return add_sample_uint64_t(n, x, y);
}

int ncuplot_set_sample(ncuplot* n, uint64_t x, uint64_t y){
  if(window_slide_uint64_t(n, x)){
    return -1;

Here is the caller graph for this function:

ncdplot_destroy()

void ncdplot_destroy

(

ncdplot *

n

)

Definition at line 732 of file plot.c.

                                  {
  return n->plot.ncp;
}

Here is the caller graph for this function:

ncdplot_plane()

ncplane * ncdplot_plane

(

ncdplot *

n

)

Definition at line 705 of file plot.c.

                                  {
    return -1;

ncdplot_sample()

int ncdplot_sample	(	const ncdplot *	n,
		uint64_t	x,
		double *	y
	)

Definition at line 728 of file plot.c.

                  { // create_double() destroys n on error
    ncdplot_destroy(ret);

Here is the caller graph for this function:

ncdplot_set_sample()

int ncdplot_set_sample	(	ncdplot *	n,
		uint64_t	x,
		double	y
	)

Definition at line 713 of file plot.c.

       {
    ncplot_destroy(&n->plot);
    free(n->slots);
    free(n);
  }
}

// takes ownership of n on all paths
ncdplot* ncdplot_create(ncplane* n, const ncplot_options* opts, double miny, double maxy){
  ncdplot* ret = malloc(sizeof(*ret));

Here is the call graph for this function:

Here is the caller graph for this function:

ncuplot_add_sample()

int ncuplot_add_sample	(	ncuplot *	n,
		uint64_t	x,
		uint64_t	y
	)

Definition at line 666 of file plot.c.

                                                                   {
  const int64_t diff = ncp->plot.slotx - x; /* amount behind */

ncuplot_create()

ncuplot * ncuplot_create	(	ncplane *	n,
		const ncplot_options *	opts,
		uint64_t	miny,
		uint64_t	maxy
	)

Definition at line 647 of file plot.c.

                                        {
    return -1;
  }
  return 0;
}

/* x must be within n's window at this point */
static void
update_sample_uint64_t(ncuplot* ncp, int64_t x, uint64_t y, bool reset){
  const int64_t diff = ncp->plot.slotx - x; /* amount behind */
  const int idx = (ncp->plot.slotstart + ncp->plot.slotcount - diff) % ncp->plot.slotcount;
  if(reset){
    ncp->slots[idx] = y;
  }else{

Here is the caller graph for this function:

ncuplot_destroy()

void ncuplot_destroy

(

ncuplot *

n

)

Definition at line 681 of file plot.c.

                  { // create_uint64_t() destroys n on error
    ncuplot_destroy(ret);

Here is the caller graph for this function:

ncuplot_plane()

ncplane * ncuplot_plane

(

ncuplot *

n

)

Definition at line 662 of file plot.c.

ncuplot_sample()

int ncuplot_sample	(	const ncuplot *	n,
		uint64_t	x,
		uint64_t *	y
	)

Definition at line 724 of file plot.c.

Here is the caller graph for this function:

ncuplot_set_sample()

int ncuplot_set_sample	(	ncuplot *	n,
		uint64_t	x,
		uint64_t	y
	)

Definition at line 670 of file plot.c.

           {
    ncp->slots[idx] = y;
  }else{
    ncp->slots[idx] += y;
  }
}

// takes ownership of n on all paths
ncuplot* ncuplot_create(ncplane* n, const ncplot_options* opts, uint64_t miny, uint64_t maxy){
  ncuplot* ret = malloc(sizeof(*ret));

update_domain_double()

int update_domain_double	(	ncdplot *	ncp,
		uint64_t	x
	)

Definition at line 603 of file plot.c.

                         {
  free(n->title);
  if(ncplane_set_widget(n->ncp, NULL, NULL) == 0){
    ncplane_destroy(n->ncp);
  }
  ncplane_destroy(n->pixelp);
  free(n->channels);
}

/* if we're doing domain detection, update the domain to reflect the value we
   just set. if we're not, check the result against the known ranges, and
   return -1 if the value is outside of that range. */
int update_domain_uint64_t(ncuplot* ncp, uint64_t x){
  const uint64_t val = ncp->slots[x % ncp->plot.slotcount];
  if(ncp->plot.detectdomain){
    if(val > ncp->maxy){
      ncp->maxy = val;
    }

Here is the call graph for this function:

update_domain_uint64_t()

int update_domain_uint64_t	(	ncuplot *	ncp,
		uint64_t	x
	)

Definition at line 584 of file plot.c.

                                { \
    return -1; \
  } \
  return redraw_plot_##T(ncpp); \
} \
int sample_##T(const nc##X##plot* ncp, int64_t x, T* y){ \
  if(x < ncp->plot.slotx - (ncp->plot.slotcount - 1)){ /* x is behind window */ \
    return -1; \
  }else if(x > ncp->plot.slotx){ /* x is ahead of window */ \
    return -1; \
  } \
  *y = ncp->slots[x % ncp->plot.slotcount]; \
  return 0; \
}

CREATE(uint64_t, u)
CREATE(double, d)
